High Current Transformers

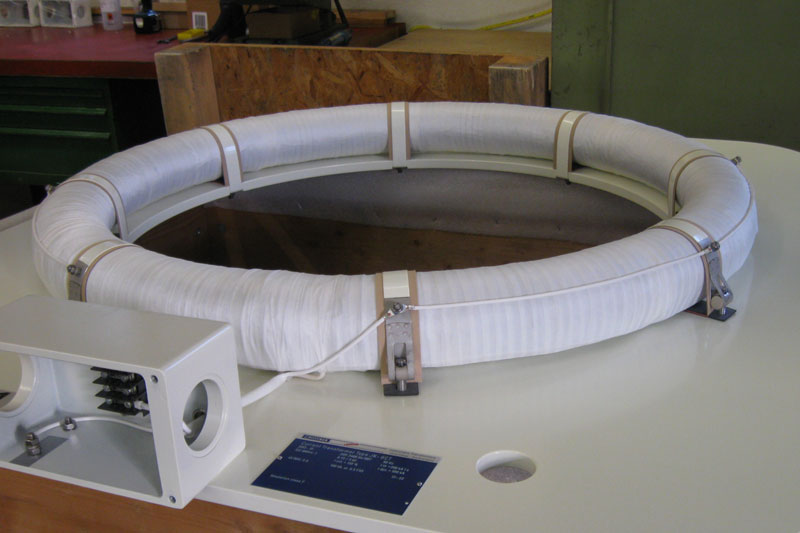

High Current Generator CT-Board Mounted(GCT)
- Ratios up to 50000:1A
- CT inside diameter(ID) up to 1600mm
- Moisture resistant (Indoor Class)
- Shield winding designs(Mitigates nearby magnetic field influence)
- Protection (TPY&5P) & Metering accuracy (with s)
- Class B (130°C) or Class F(155°C)
- High heat dissipation capability
- IEEE and IEC ratings

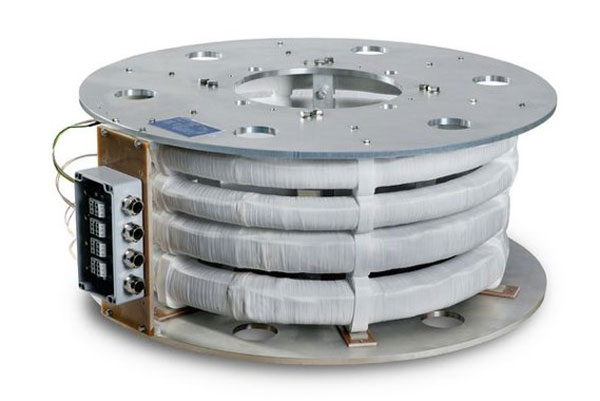

High Current Generator CT-ALG Array Board Mounted
- Ratios up to 45000:1A, up to 4 cores
- CT inside diameter(ID) up to 1600mm
- Moisture resistant (Indoor Class)
- Shield winding designs(Mitigates nearby magnetic field influence)
- Protection (TPY&5P) & metering accuracy (with s)
- Class B (130°C) or Class F (155°C)
- Polyester wrapped CT strapped to board
- High heat dissipation capability
- One conduit box per core
- IEEE and IEC ratings

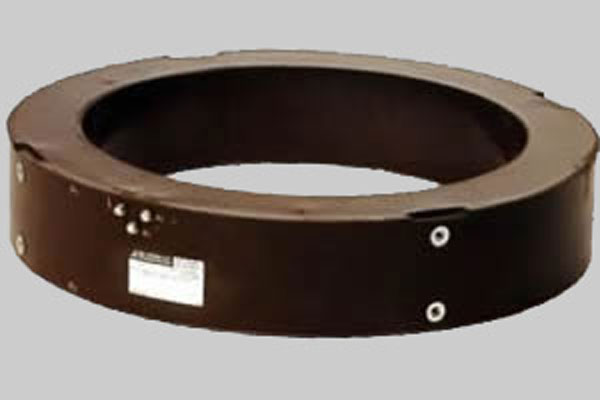

High Current Generator CT-Casting Resin(AKA)
- Ratios up to 50000:1A
- CT inside diameter(ID) up to 1600mm)
- Designed for Indoor / Outdoor Use
- Shield winding designs(Mitigates nearby magnetic field influence)
- Relaying (TPY&5P) & metering accuracy (with s)
- Insulation Class B (130°C)
- Reinforced feed-through mounting holes
- IEEE and IEC ratings

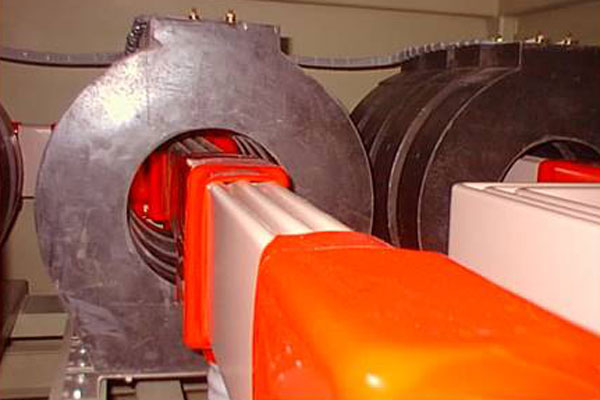

High Current Generator CT-GCT Array Cast Resin Bus Mounted
- Ratios up to 45000:1A
- Hole/Window ID sizes up to 1200mm
- Designed for Indoor / Outdoor (Optional)
- Shield winding designs(Mitigates nearby magnetic field influence)
- Protection(TPY&5P) & metering accuracy (with s)
- Assembled up to 4 cores
- Sealed conduit box
- Insulation Class B (130°C)
- IEEE and IEC ratings
